PaveX™ Crack-A-Joint™

RRP $0.00
    • Description
    • Features
    • Documents

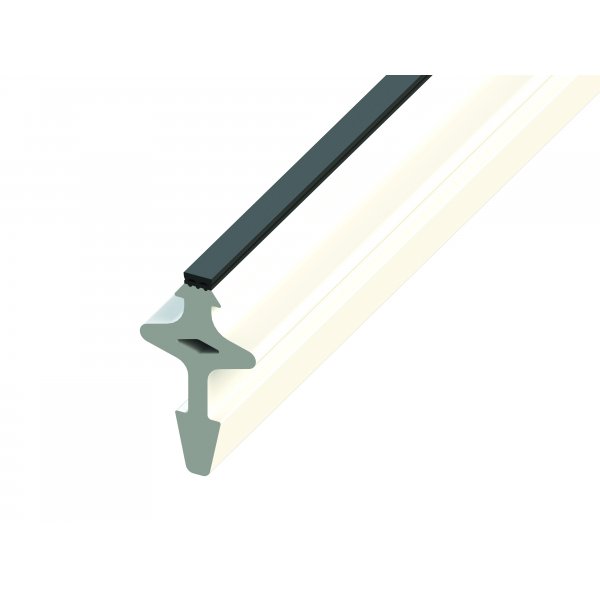

    As an alternative to traditional saw cutting and tooled joints, PaveX™ Crack-A-Joint™ induces a controlled crack to the full depth of the concrete. PaveX™ Crack-A-Joint™ is available in 3 metre lengths, with profile heights of 25mm and 38mm which initiate a crack in slabs between 75mm and 150mm in depth.

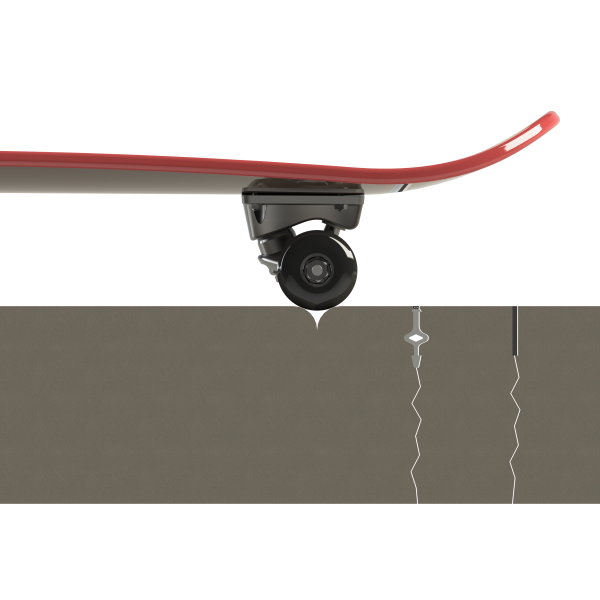

    A smoother ride: PaveX™ Crack-A-Joint™ provides a low-noise transition over weakened plane joints.



    Extruded in UV stabilised uPVC, PaveX™ Crack-A-Joint™ is also suitable for use in pavements in chemically corrosive environments including chlorinated or salt-water swimming pool surrounds and coastal environments.



    PaveX™ Crack-A-Joint™ complies with the requirements of

    AS 3727.1:2016 Residential Pavements.



    Accessories:  PaveX™ Crack-A-Joint™ Capping available in Black or Grey, on a 60m spool. Clip-on Joiner available in a 50pce pack. Capping and Joiner are both sold separately.

    Features:

    • Safety: Reduces the risk of cuts and abrasions caused by sharp edges on traditional steel profiles.
    • Complies with the requirements of AS 3727.1:2016 Residential Pavements.
    • A smoother ride: PaveX™ Crack-A-Joint™ provides a low-noise transition over weakened plane joints.

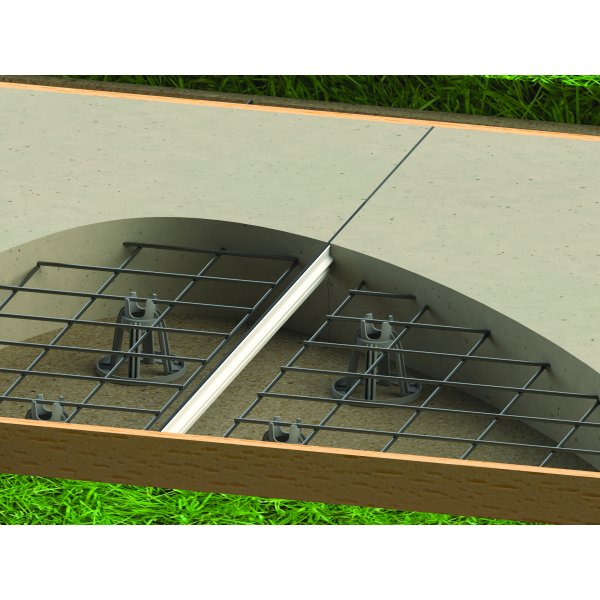

    • Immediately initiates a contraction joint in the slab when placed in freshly poured wet concrete.
    • Finish the slab the same day. There is no need to return the next day for saw-cutting.
    • PaveX ™ Crack-A-Joint™ can be placed quickly, with precision.
    • Unique profile compliments aggregate interlock which facilitates load transfer.
    • Profile heights of 25mm and 38mm initiate controlled cracks in slabs between 75mm and 150mm in depth.
    • Available in 3m standard lengths.
    • Corrosion-Free: PaveX™ Crack-A-Joint™ is extruded from UV stabilised uPVC.
    • PaveX™ Crack-A-Joint™ will butt up to any given edge, including columns.
    • Lightweight and easy to carry around the job site.
    • Reduces the risk of early shrinkage cracking, producing architecturally aesthetic pavements.
    • No joint filler required: The edge of the PaveX™ Crack-A Joint™ profile acts as a support for the edge of the concrete and stops unsightly fraying and spalling.

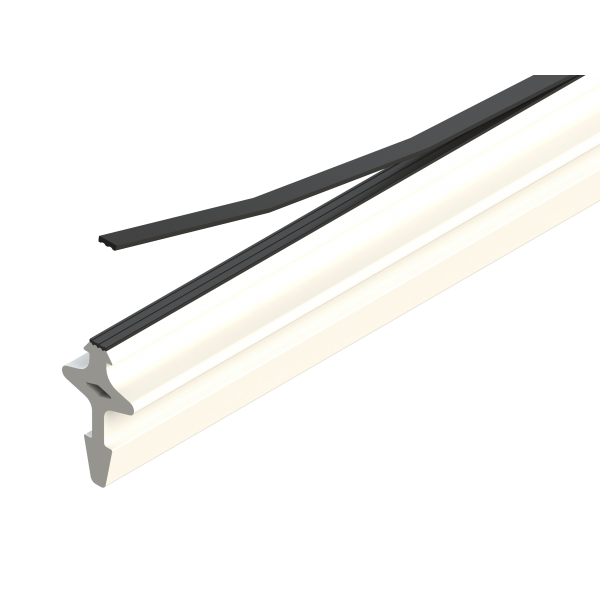

    • Optional: PaveX™ Crack-A-Joint™ Rip-A-Strip Capping and Clip-on Joiners are sold separately.
    File Type File Description
    PaveX™ Joint System Product Guide BrochuresDesigned and developed in conjunction with councils and concrete contractors alike, PaveX™ expansion and weakened plane joint solutions are lightweight, corrosion-free and are quick & easy to install.

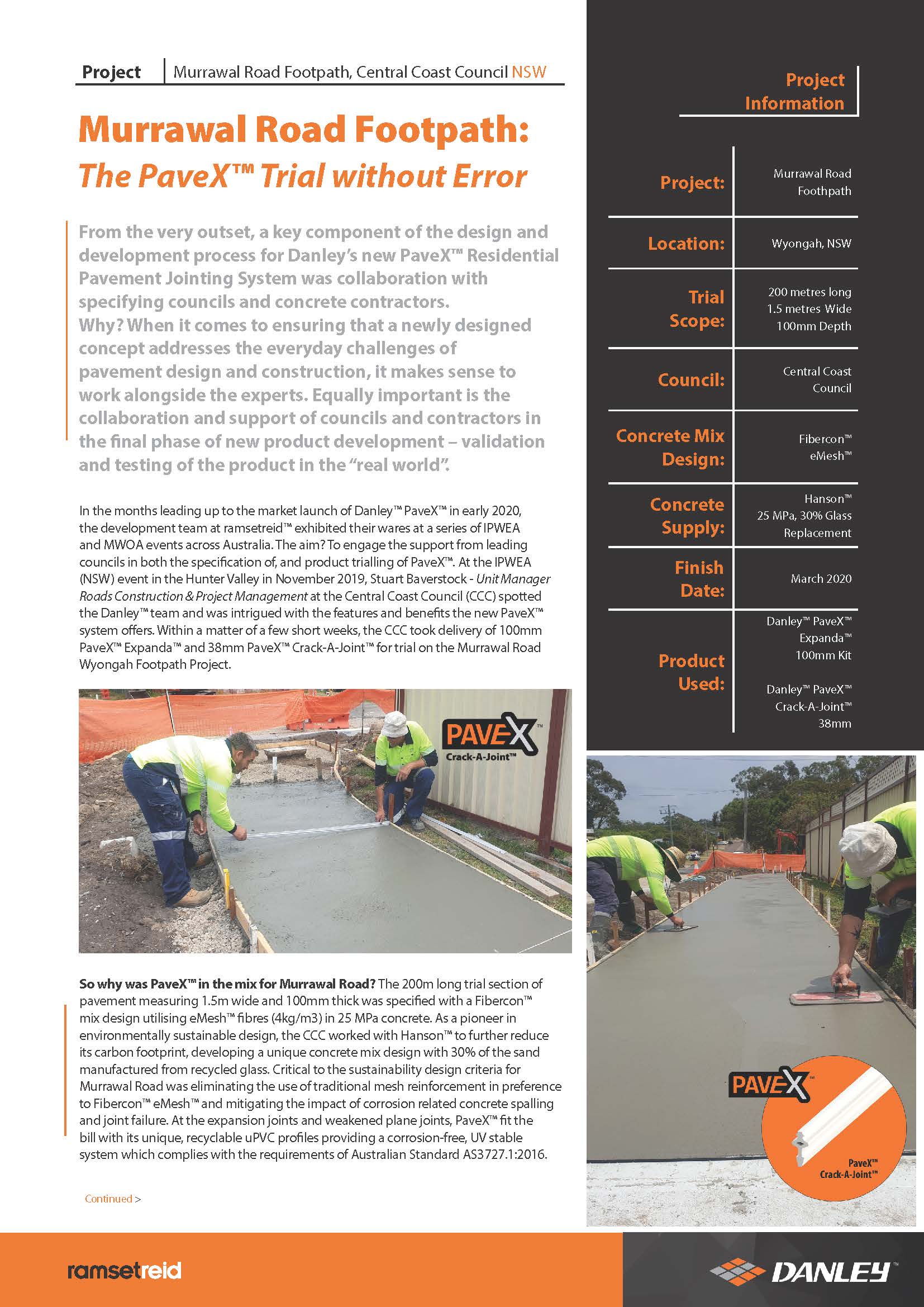

    PaveX™ Case Study_Murrawal Rd Footpath NSW Project Case StudiesBucking the trend of "trial and error", the Central Coast Council puts new PaveX™ Expanda™ & PaveX™ Crack-A-Joint™ to the test in their Murrawal Rd Footpath project, with perfect results...

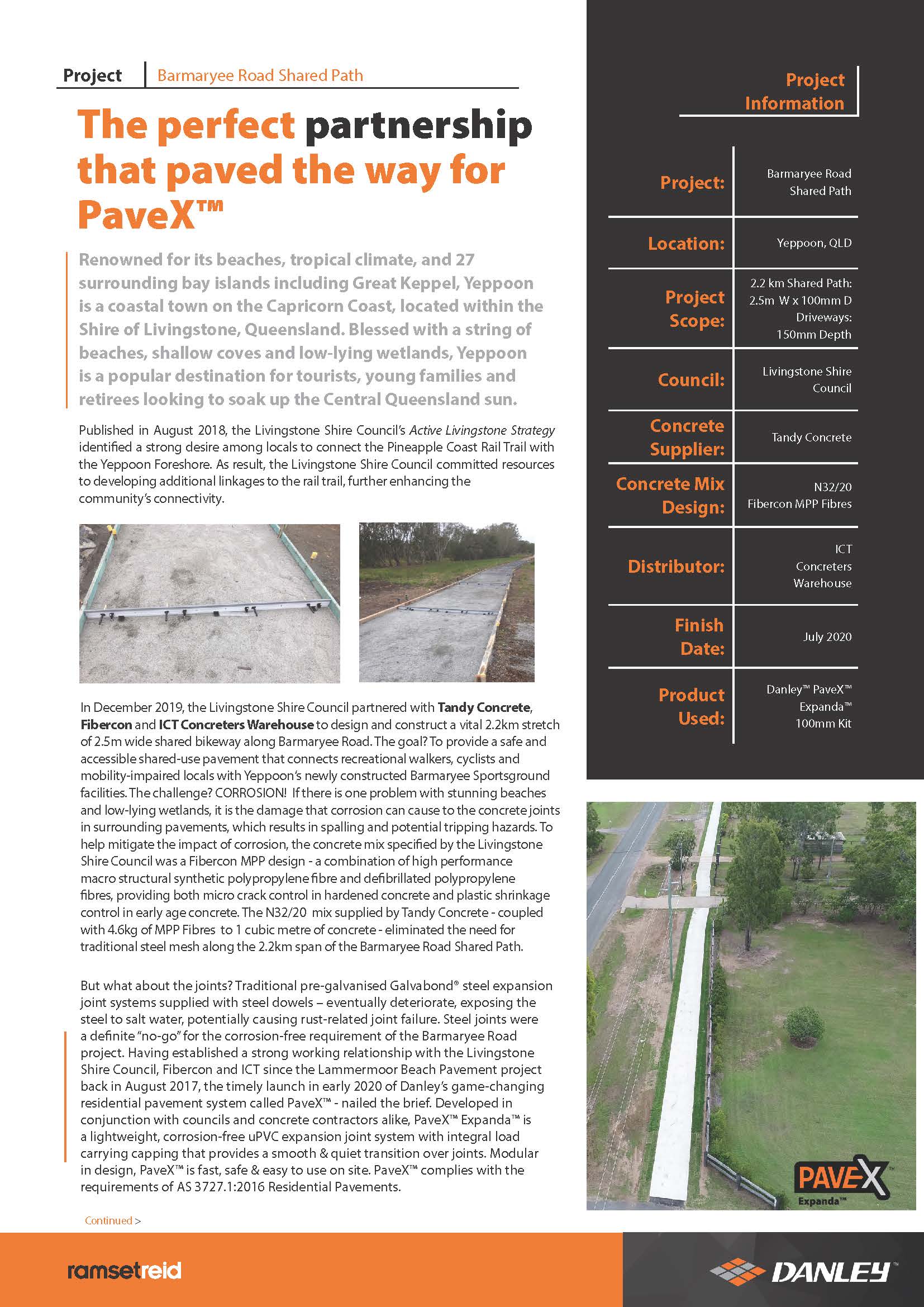

    Barmaryee Road Shared Path PaveX Project Case Study Project Case StudiesThe Barmaryee Road Shared Path project in Yeppon QLD, was the very first Livingstone Shire Council project where PaveX™ Expanda™ was specified and installed...

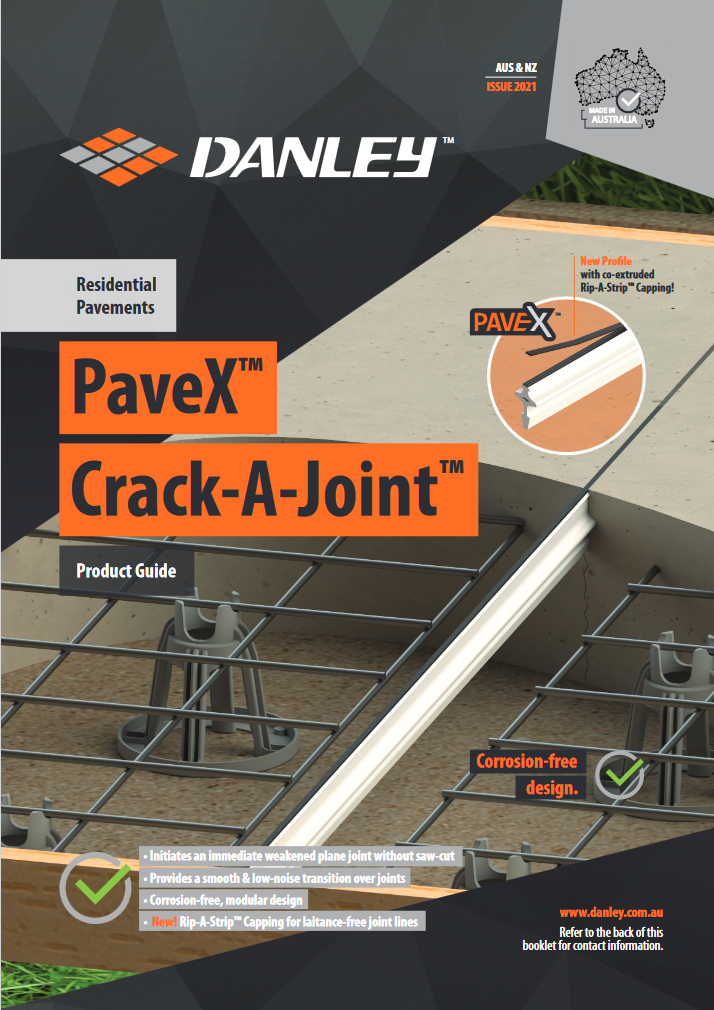

    Danley_PaveX Crack-A-Joint Product Guide Product CataloguesProvides an overview of the PaveX Crack-A-Joint, Technical Data and guidelines for the correct specification and use.

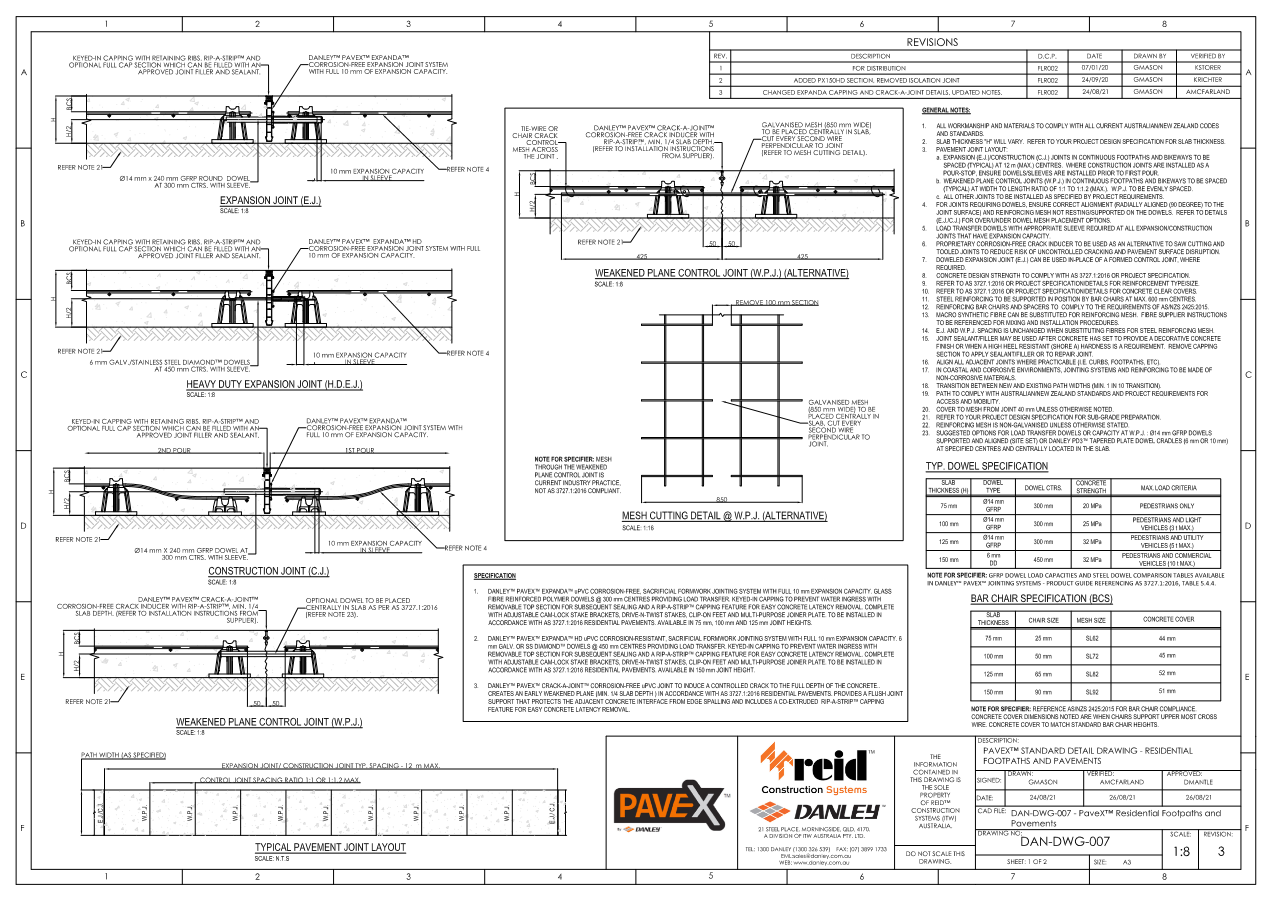

    DAN-DWG-007 - PaveX™ Residential Footpaths and Pavements (pdf) DrawingsSpecification Detail for PaveX™ - Residential Footpaths and Pavements (pdf)
