Combination Bar Chairs

RRP $0.00
    • Description
    • Features
    • Documents
    • Digital Downloads


    Combination Bar Chairs are used to set the reinforcing bar and mesh to the correct position within the concrete cover. Ideal for use in applications including polystyrene pod slabs, slab-on-ground and swimming pools. The Danley™ range of Plastic Combination Bar Chairs are available in a range of standard sizes: 25mm & 40mm, 50mm & 65mm, 75mm & 90mm, 85mm & 100mm cover.

    The easy to use clip-on mechanism of the BC5065C ensures correct mesh placement is maintained when the crew is either walking on the mesh, or when the mesh is being repositioned or moved.

    Tall Combination Bar Chairs (Image 3) are used to set the reinforcing bar and mesh to the correct position within the concrete cover for heavy duty, slab-on-ground applications. The Danley™ range of Tall Plastic Combination Bar Chairs are available in a range of standard sizes: 105mm & 110mm, 115mm & 120mm, 125mm & 130mm, 135mm & 140mm, 145mm & 150mm, 155mm & 160mm, 165mm & 170mm



    We provide stronger, more reliable Tall Combination Bar Chairs! We have enhanced our 4 SKUs (BC135140, BC145150, BC155160, BC165170) to deliver unmatched durability.

    Danley Combination Bar Chairs comply with the requirements of AS/NZS 2425:2015.



    Features:

    • Australian Made. The Reid Contruction Systems® manufacturing facility at Chirnside Park (Victoria) is ISO 9001 certified.
    • Strong and stable construction
    • Complies with the requirements of AS/NZS 2425:2015.




    File Type File Description
    Danley Product Catalogue ANZ Product CataloguesOur Danley™ product range is specifically developed to solve problems faced by the industry in the design and construction of concrete flooring applications.
    Danley Plastic Chairs & Spacers Product Catalogue ANZ Product CataloguesDanley Plastic Chairs & Spacers Product Catalogue
    Danley Combination Bar Chairs Statement of Compliance Product BulletinsDanley_Combination Bar Chairs_Statement of Compliance
    File Type File Description
    Danley Tall Combination Bar Chairs_A4 Flyer Brochures & FlyersDanley Tall Combination Bar Chairs_A4 Flyer

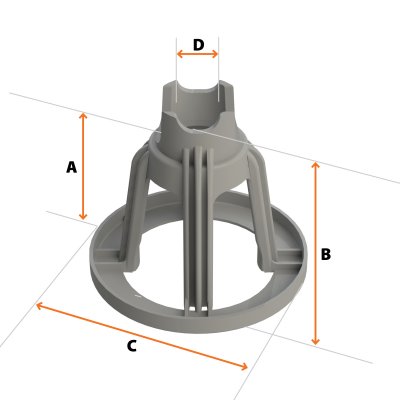

    Combination Bar Chair

    Combination Bar Chair:

    Part # Description AS/NZS
    2425 Load Rating (kg)
    Pack qty
    (Each)
    Pallet qty
    (pack)
    Pallet qty
    (Each)
    Pallet Height Pallet
    Cubic metre
    A (mm) B (mm) C (mm) D
    (mm)
    Max bar size
    BC2540 Combination Bar Chair 25/40mm 120 100 50 5,000 1,000 1.44 25 40 85 up to 20mm
    BC5065C Combination Bar Chair 50/65mm Clip On 120 100 60 6,000 1,300 1.87 50 65 100 up to 20mm
    BC7590 Combination Bar Chair 75/90mm 120 100 40 4,000 1,100 1.58 75 90 110 up to 20mm
    BC85100 Combination Bar Chair 85/100mm 120 100 40 4,000 1,500 2.16 85 100 110 up to 20mm

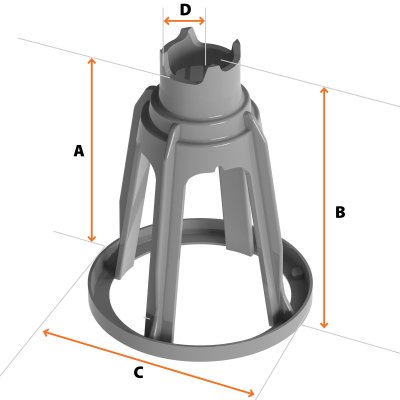

    Tall Combination Bar Chair

    Tall Combination Bar Chair:

    Part # Description AS/NZS
    2425 Load Rating (kg)
    Pack qty
    (Each)
    Pallet qty
    (pack)
    Pallet qty
    (Each)
    Pallet Height Pallet
    Cubic metre
    A (mm) B (mm) C (mm) D
    (mm)
    Max bar size
    BC105110 Tall Combination Bar Chair 105/110 120 100 40 4,000 1,450 2.09 105 110 110 up to 25mm
    BC115120 Tall Combination Bar Chair 115/120 120 100 24 2,400 1,550 2.23 115 120 110 up to 25mm
    BC125130 Tall Combination Bar Chair 125/130 120 100 24 2,400 1,550 2.23 125 130 110 up to 25mm
    BC135140 Tall Combination Bar Chair 135/140 120 100 40 4,000 1,590 2.29 135 140 110 up to 25mm
    BC145150 Tall Combination Bar Chair 145/150 120 100 24 2,400 1,470 2.12 145 150 120 up to 25mm
    BC155160 Tall Combination Bar Chair 155/160 120 100 20 2,000 1,470 2.12 155 160 120 up to 25mm
    BC165170 Tall Combination Bar Chair 165/170 120 50 40 2,000 1,500 2.16 165 170 120 up to 25mm
