Plate 30 ArmourMate™

RRP $0.00
    • Description
    • Features
    • Documents

    Plate 30 ArmourMate™ is designed for installation at construction joints in cold storage rooms, conventional slabs, and fibre-reinforced slab designs, where controlled joint openings up to 30mm are required. This system ensures a smooth transition for traffic moving over the joint, reducing wear and impact on materials handling equipment.

    Plate 30 ArmourMate™ is a cover plate-type armour edging solution, engineered for environments where small hard-wheeled materials handling traffic operates under high loads daily, including logistics, warehousing, and cold storage facilities. It is used in conjunction with the 10mm Diamond™ Dowel AirEx™, providing effective load transfer and enhanced joint integrity.
    • Designed for demanding environments – Withstands heavy traffic loads, including small hard-wheeled materials handling equipment.
    • Controlled joint openings – Accommodates up to 30mm of joint movement while maintaining floor integrity.
    • Smooth traffic flow – Reduces floor wear, protecting handling equipment and improving operational efficiency.
    • Integrated with 10mm Diamond™ Dowel AirEx™ – Provides effective load transfer and minimises joint stress, ensuring long-term performance.
    File Type File Description

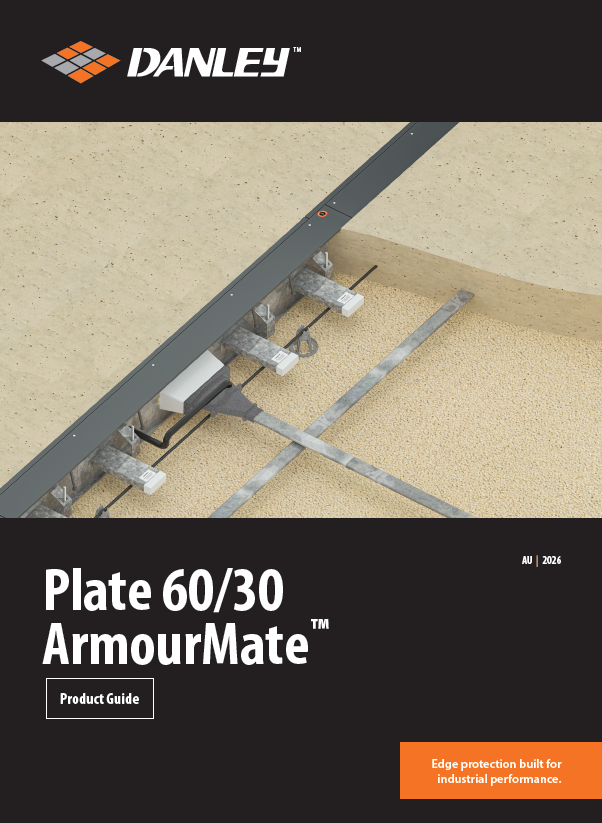

    Plate 60/30 ArmourMate™ Product Guide Product GuidesEdge protection built for industrial performance

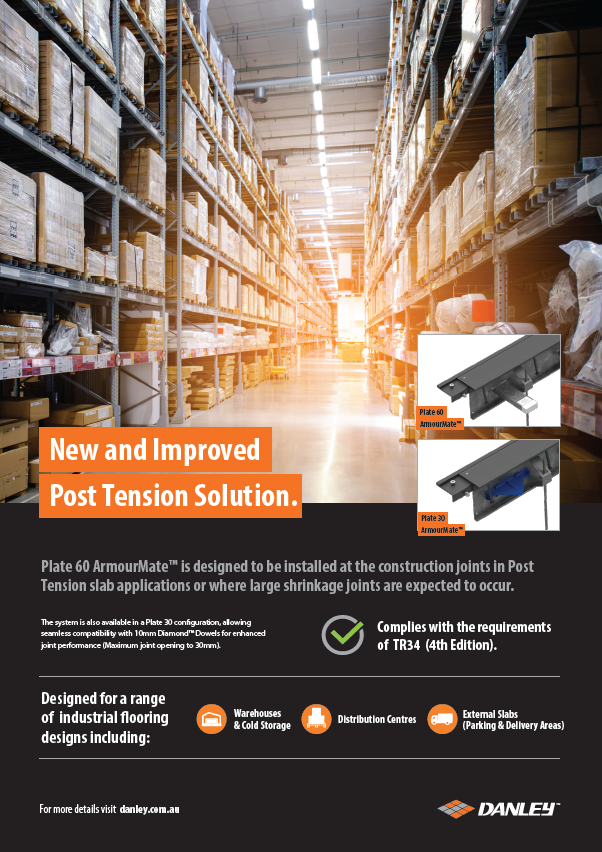

    Plate 60/30 ArmourMate Flyer Brochures & FlyersEdge protection built for industrial performance, Plate 60/30 introductory fly

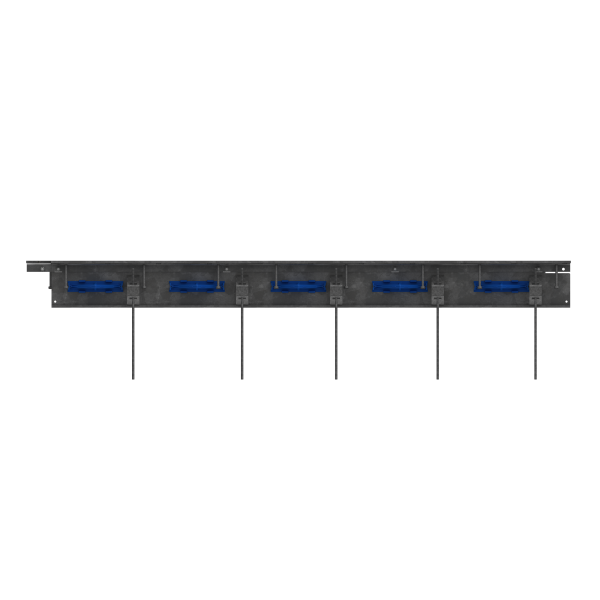

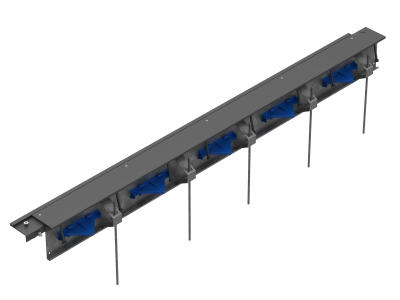

    Plate 30 ArmourMate™

    Plate 30 ArmourMate™:

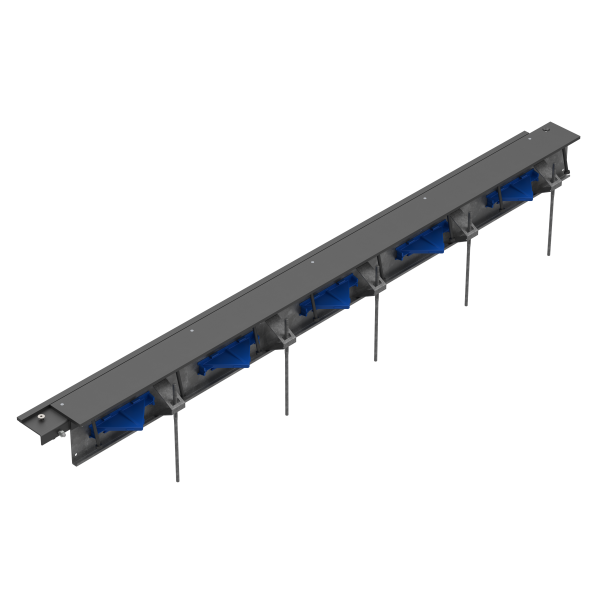

    Product SKU Description Load Transfer Provided
    AMP30FJS165G Plate 30 165 Full Joint System Galv 2.1mtr 10mm Diamond Dowel, Galv @ 410mm centers
    AMP30FJS190G Plate 30 190 Full Joint System Galv 2.1mtr 10mm Diamond Dowel, Galv @ 410mm centers


    Please Note: 30mm opening for cold store rooms, conventional and fibre design slabs. DD’s supplied with joint.

    ArmourMate™ Profile by Slab 0n Ground Application:

    Application Hyper ArmourMate™ WavePlate™ ArmourMate™ Plate 30 ArmourMate™ Plate 60 ArmourMate™
    Small, hard wheeled traffic (pallet jacks) ✔ ✔ ✔ ✔
    Cushioned wheel traffic (forklifts & trucks) ✔ ✔ ✔ ✔
    Automated MHE equipment ✔ * ✔ ✔ * ✔ *
    Heavy loads ✔ ✔ ✔
    Warehouse internal slabs ✔ ✔ ✔ ✔
    External slabs, pavements & carparks ✔ ✔ ✔ ✔
    Large slab shrinkage & movement at joint (PT) ✔
    High FF & FL floors ✔ ✔
    Medium slab shrinkage & movement at joint (cold room) ✔


    * When using epoxy to fill.
