Keyjoint Expanda™

RRP $0.00
    • Description
    • Features
    • Documents


    Keyjoint Expanda™ is a unique product which is designed specifically to overcome slab alignment problems. Keyjoint Expanda™ comprises Danley™ Keyjoint fitted with 5mm close cell foam which provides for thermal expansion of adjacent slabs. This allows expansion of the concrete, giving a high performing, cost effective expansion system with a joint finish which is second to none.

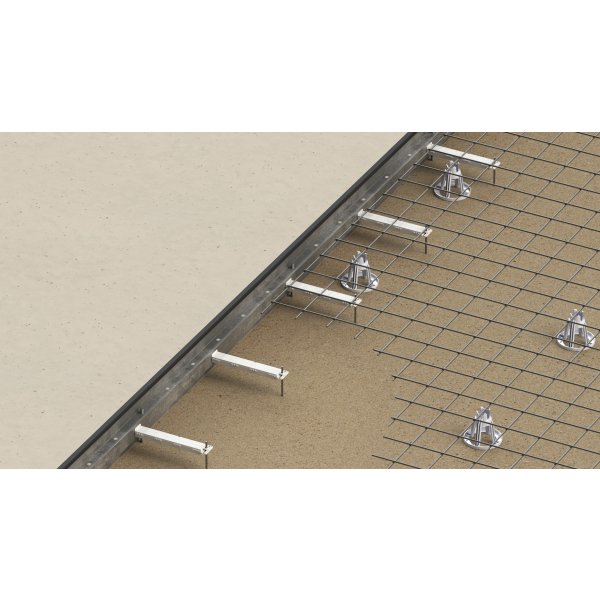

    Similar to Keyjoint, Keyjoint Expanda™ is self-supporting and height adjustable utilising the Danley™ drive-n-twist stake system. Expanda™ can be used as plain joint, or is compatible with either temporary or permanent Rip-A-Strip™ capping profiles (sold separately). Keyjoint Expanda™ is available in standard 3m lengths features knock-out holes for 16mm or 20mm square dowels every 150mm. This provides flexibility in centre spacings at 150mm, 300mm, 450mm and 600mm as standard. The Knock-out holes suit Danley™ Dowelmaster™ sleeves (16mm and 20mm) which provides concrete contractors with a full joint system that includes the dowels, sleeves and the formwork.

    Keyjoint Expanda™ complies with the requirements of AS 3727.1:2016 Residential Pavements.




    Features:

    • Danley™ Keyjoint Expanda™ is fitted with a 5mm close cell foam, providing thermal expansion of adjacent slabs.
    • Allows lateral movement between the slabs, but limits differential deflection between the slabs.
    • Tighter key taper, giving less differential deflection than competing systems.
    • Allows continuous concrete placement with preformed internal joints.
    • Incorporates unique “drive-n-twist” stake system to make installation simple.
    • Knock-outs provide for placement of square dowels (round dowels can also be used if specified).
    • Ideal for footpaths, shared bikeways and light traffic areas.
    • Companion capping available for 3mm recess and a 10mm recess
    • Rip-A-Strip™ permanent capping profiles are available in 2 different colours: Black and Grey.
    • Danley™ Keyjoint Expanda™ profiles are compatible with 16mm and 20mm Dowelmaster™.
    • GALVABOND® steel “stay-in-place” formwork system.
    • Complies with the requirements of AS 3727.1:2016 Residential Pavements.




    File Type File Description
    Expanda Joint Brochure.pdf Brochures
    Danley™ Product Catalogue ANZ 2021 Product CataloguesOur Danley™ product range is specifically developed to solve problems faced by the industry in the design and construction of concrete flooring applications.
    Expanda Joint With Dowelmaster Section.pdf Drawings
    Expanda Joint With Dowelmaster Section.dwg DWG
    Expanda Joint Section.dwg DWG
