Hyper Xtend™

RRP $0.00
    • Description
    • Features
    • Documents

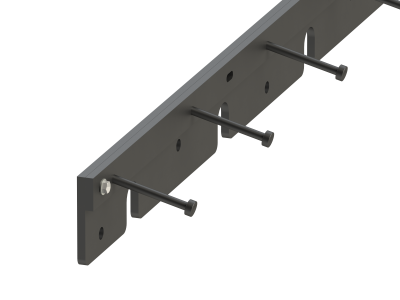

    Danley™ Hyper Xtend™ is an armour edging system designed for repairing joints in aged slabs or extending existing concrete elements into newly poured sections. It provides protection for concrete edges exposed to daily materials handling traffic, including small hard wheels carrying heavy loads.

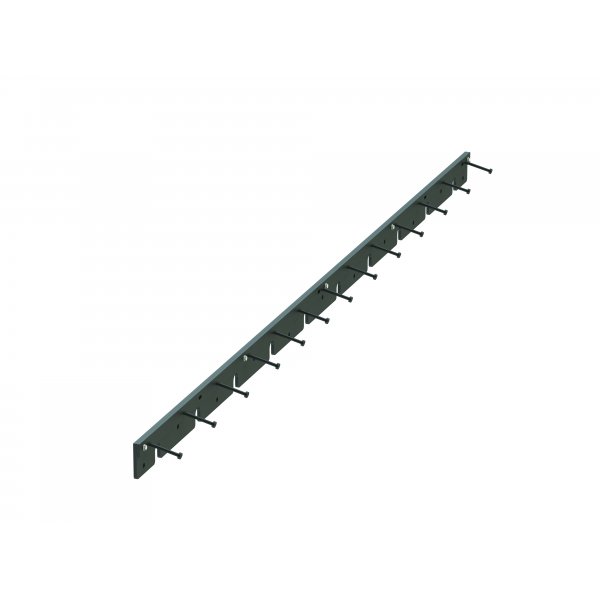

    Suitable for industrial floors, ports, container yards, hardstand connections and freight facilities, Hyper Xtend™ is supplied in 3 metre lengths with black or galvanised steel top rails.

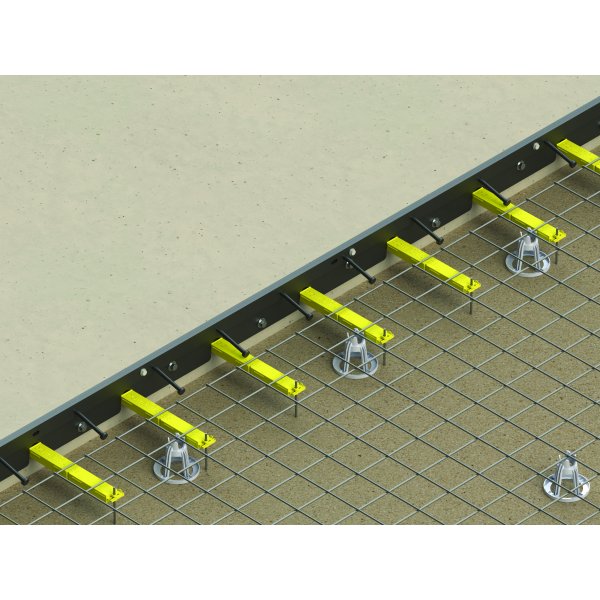

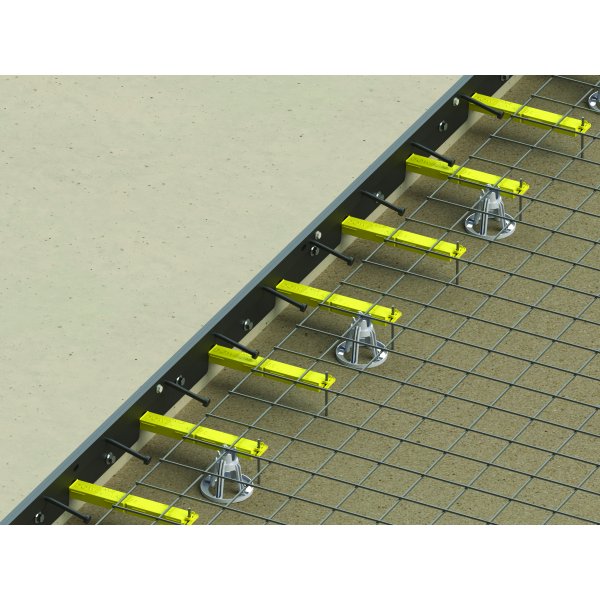

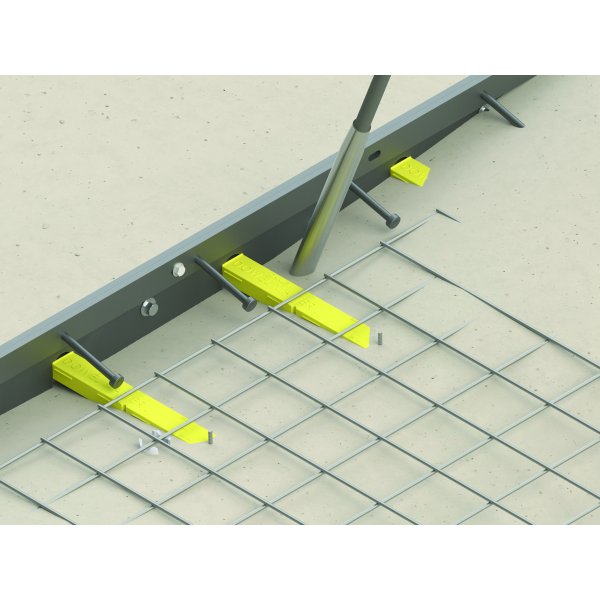

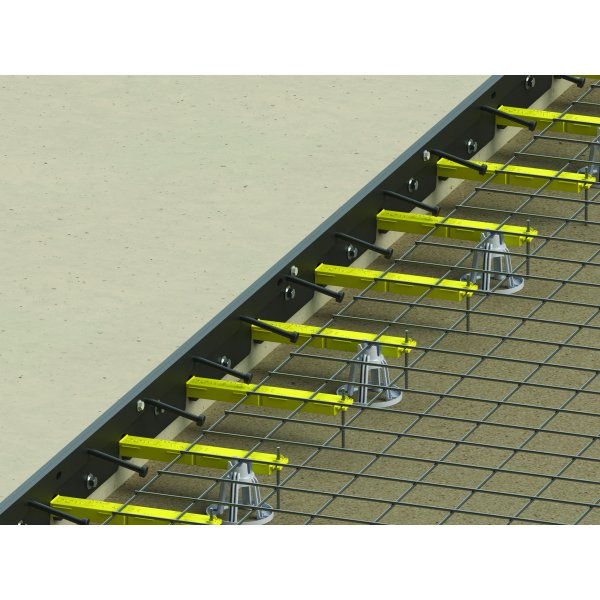

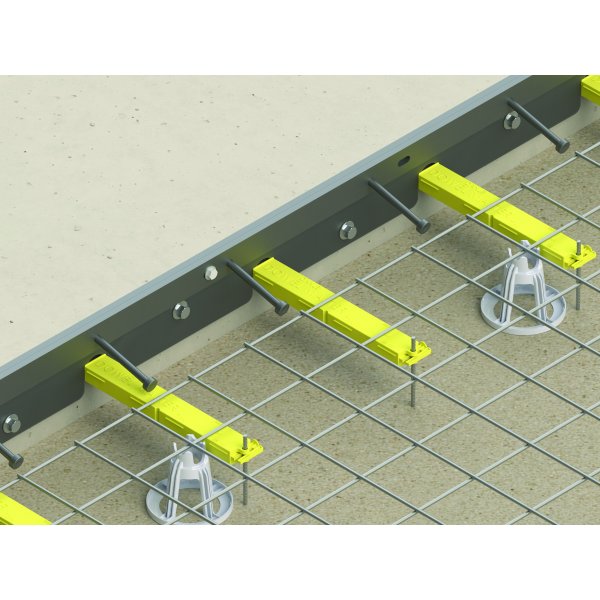

    Designed for slabs over 150mm deep, the system accommodates Danley™ DowelMaster™ sleeves with 16mm, 20mm or 25mm saw cut square dowels. For joints requiring movement of up to 20mm, it is also compatible with Danley™ Flanged Dowel Box Sleeve Kits. Dowels and sleeves are sold separately.

    Key features and benefits

    Repair and extend existing slabs
    Designed for joint repairs and connections between existing concrete and new pours.

    Durable steel edge protection
    Protects concrete joint edges in demanding materials handling environments.

    Choice of finishes
    Available with black or galvanised steel top rails.

    Flexible dowel compatibility

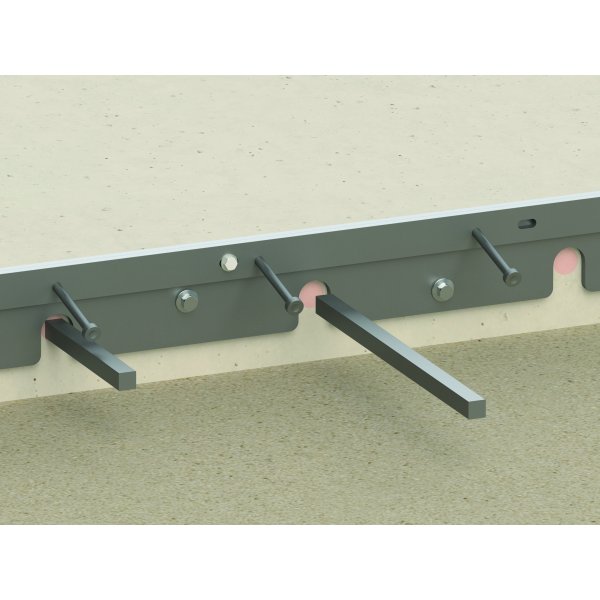

    Accommodates 16mm, 20mm or 25mm square dowels, with precut slots at 300mm or 600mm centres.

    Fixings included

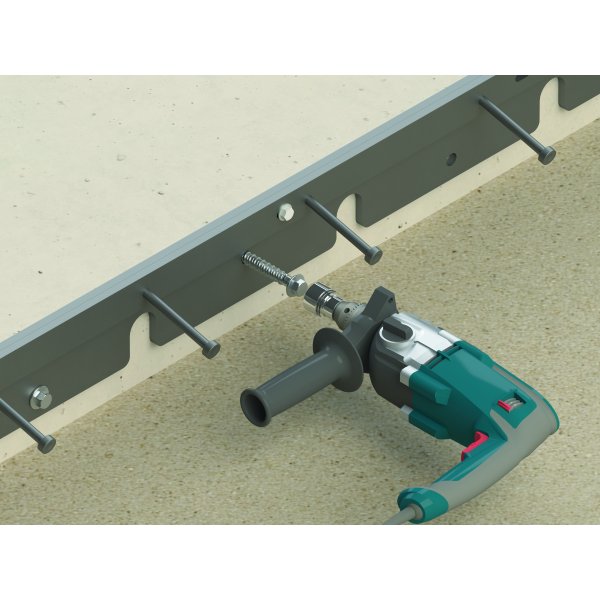

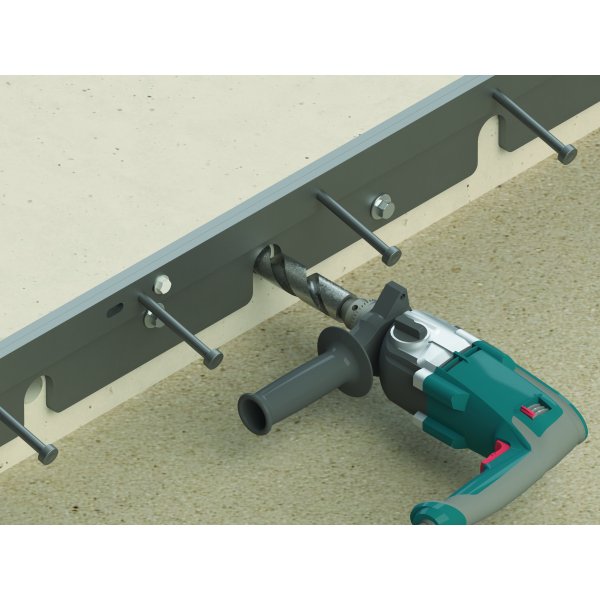

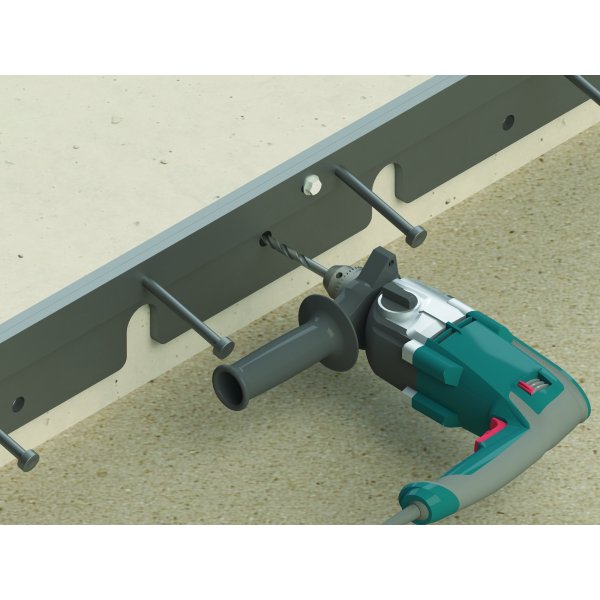

    Supplied with 12mm × 100mm galvanised Ramset™ AnkaScrews™ for securing the system to the existing slab.

    Typical applications
    • Industrial floors
    • Ports and container yards
    • Hardstand connections
    • Freight and transport facilities
    • Semi automated and automated materials handling environments
    File Type File Description
    Danley Product Catalogue AU Product CataloguesOur Danley™ product range is specifically developed to solve problems faced by the industry in the design and construction of concrete flooring applications.
    Hyper Xtend™ Tech Data Sheet_2026 Product Data SheetsDanley™ Hyper Xtend™ is used for the repair of joints in aged slabs, or extending existing concrete elements to newly poured sections.

    Hyper Xtend™ Product Codes

    Hyper Xtend™ Product Codes:

    Product SKU Description
    AMHYPXTDB Hyper Xtend™ Kit (Black)
    AMHYPXTDG Hyper Xtend™ Kit (Galvanised)

    Hyper Xtend™ Technical specifications:

    Specification Details
    Standard length 3 metres
    Product weight 35kg
    Slab depth Over 150mm
    Top rail finish Black or galvanised steel
    Exposed edge Two sections, each 10mm wide

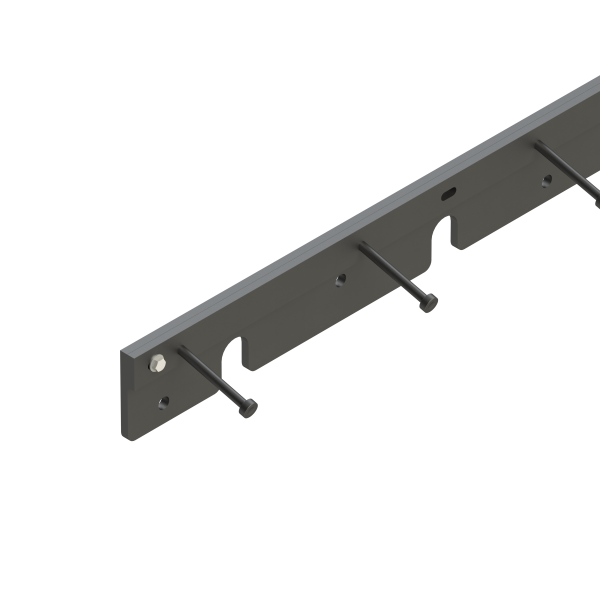

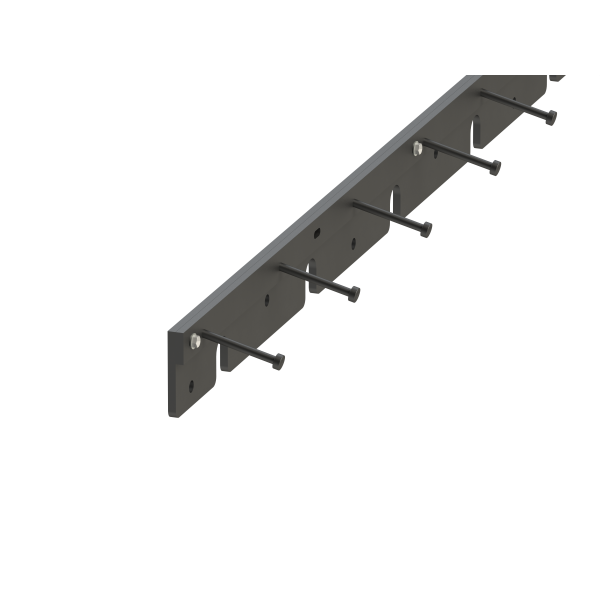

    Shear studs 100mm × 10mm cold drawn steel
    Dowel slot centres 300mm or 600mm
    Compatible square dowels 16mm, 20mm or 25mm
    Included fixings 12mm × 100mm galvanised Ramset™ AnkaScrews™
    Dowels and sleeves Sold separately
