Hyper ArmourMate™ Expanda™

RRP $0.00
    • Description
    • Features
    • Documents

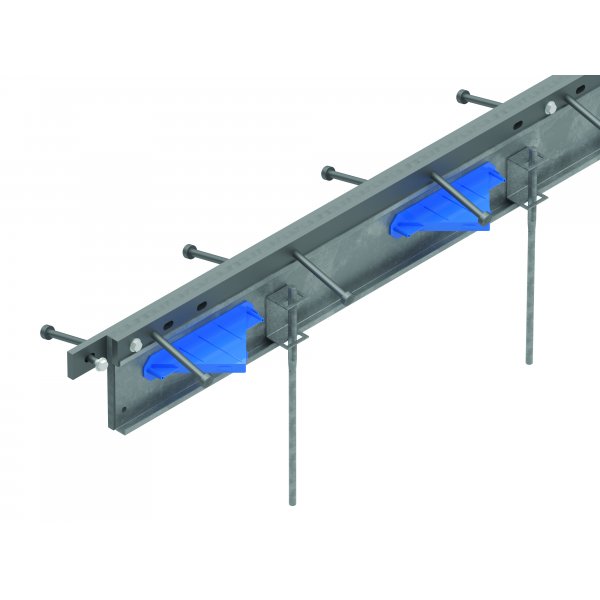

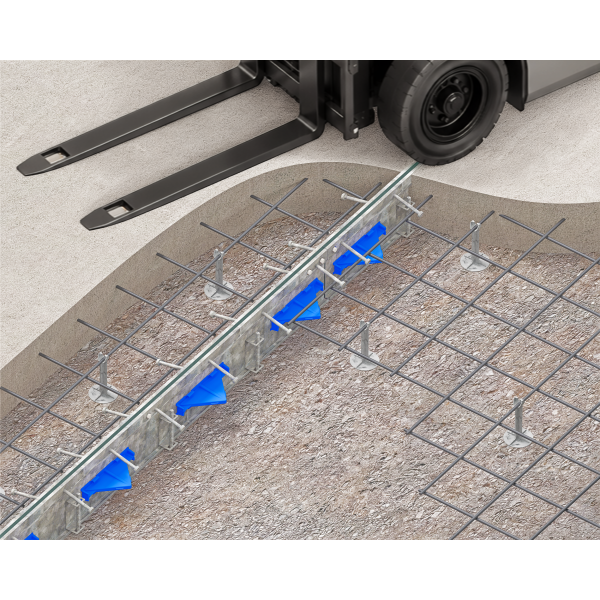

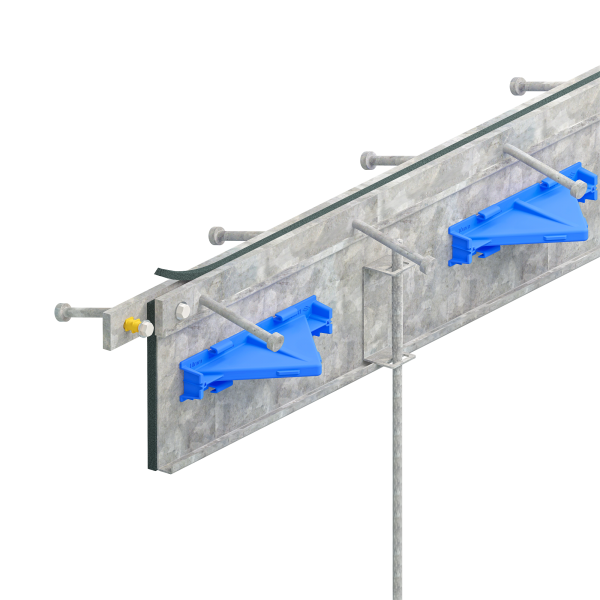

    Hyper ArmourMate™ Expanda™ is a premium armour edging solution designed for applications where the concrete edge and wear surface must withstand materials handling traffic with small hard-wheels carrying high-loads on a daily basis, in particular semi-automated and automated materials handling environments. Ideally suited to external industrial pavements, Hyper ArmourMate™ Expanda™ is galvanised and pre-fitted with 10mm close cell expansion foam to provide for the thermal expansion of concrete.

    Hyper ArmourMate™ Expanda™ provides slab edge protection to prevent concrete spalling and provides for the thermal expansion of concrete.
    • Cold Drawn Steel Top Rail. Dimension: 40mm H x 10mm W
    • Galvanised top rail, shear studs and separation plates
    • Fitted with 10mm close cell foam for thermal expansion of concrete
    • 100mm x 10mm Cold Drawn Steel shear studs
    • Supplied in standard 3000mm lengths
    • 60mm overlap/offset of top rail for butt joining of sections
    • Galvanised Danley™ Diamond™ Dowels provide load transfer
    • Twist-n-Turn Stake Bracket System
    File Type File Description
    Danley Product Catalogue ANZ Product CataloguesOur Danley™ product range is specifically developed to solve problems faced by the industry in the design and construction of concrete flooring applications.

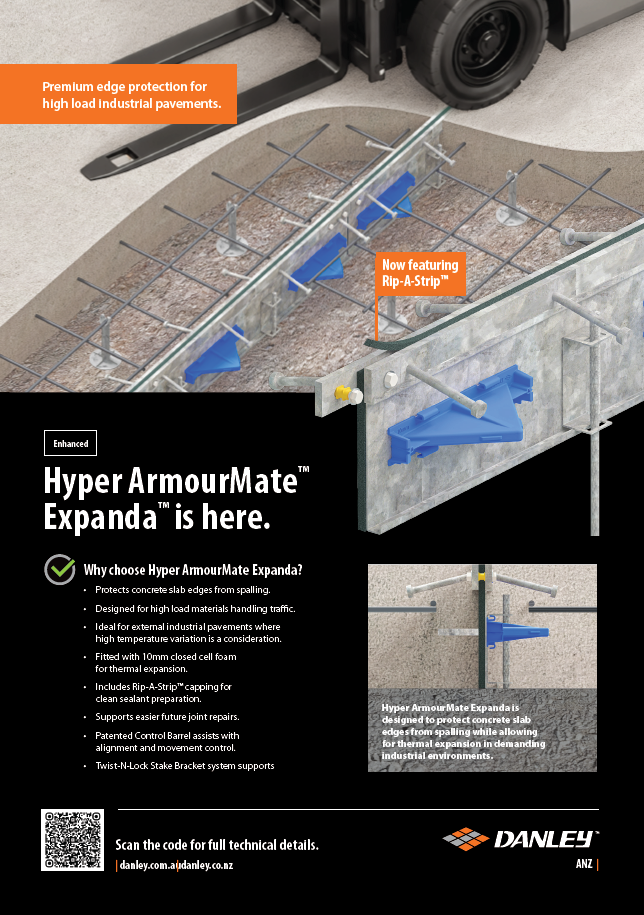

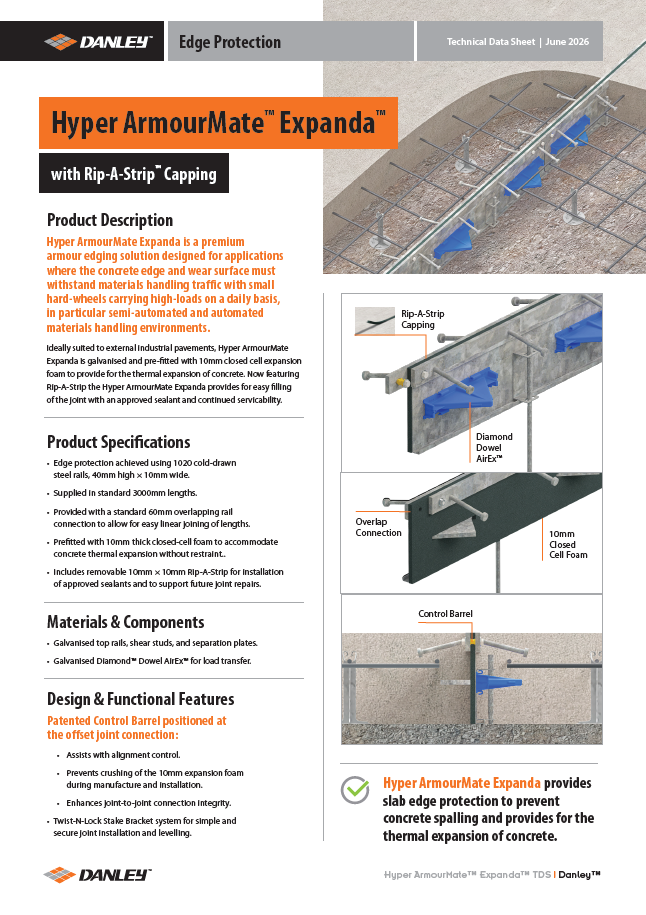

    Danley™ Hyper ArmourMate Expanda™ TDS Product Data SheetsHyper ArmourMate FJS with 10mm Expansion Foam.

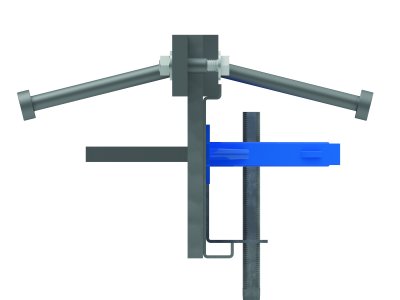

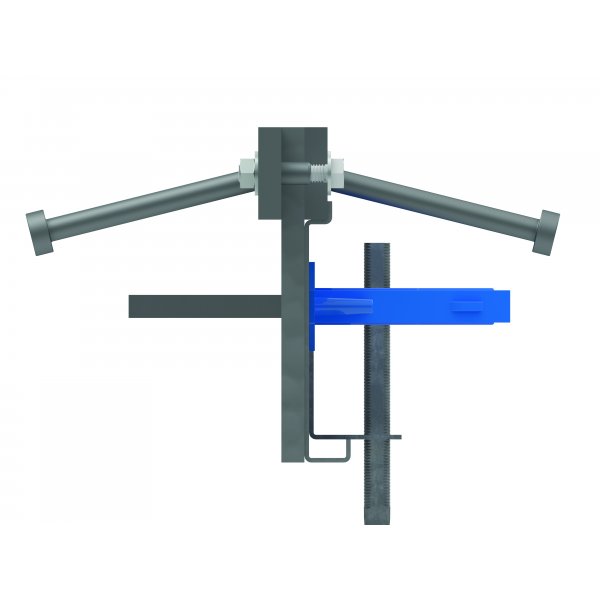

    Hyper ArmourMate™ Expanda™

    Hyper ArmourMate™ Expanda™:

    Product Codes Rail Dims
    H x W (mm)    		 Length
    (mm)    		 Diamond™ Dowel
    (10mm or 20mm)    		 Dowel Centres
    (mm)    		 FJS Height
    (mm)    		 Slab Depth
    (mm)    		 Finish
    AMHY145FJSG-EF 40 x 10 3000 10mm 450mm 145mm 150-165 Galvanised
    AMHY165FJSG-EF 40 x 10 3000 10mm 450mm 165mm 170-185 Galvanised
    AMHY190FJSG-EF 40 x 10 3000 10mm 450mm 190mm 195-220 Galvanised
    AMHY245FJSG-EF 40 x 10 3000 20mm 450mm 245mm 250-300 Galvanised
