25 mm Dowelmaster™

RRP $0.00
    • Description
    • Features
    • Documents

    Dowelmaster™ sleeves are multi-directional plastic sleeves suitable for high capacity square dowels. They allow for contraction at the joint, as well as having a small amount of lateral movement and expansion capacity. They are ideal for construction joints in ground slabs.

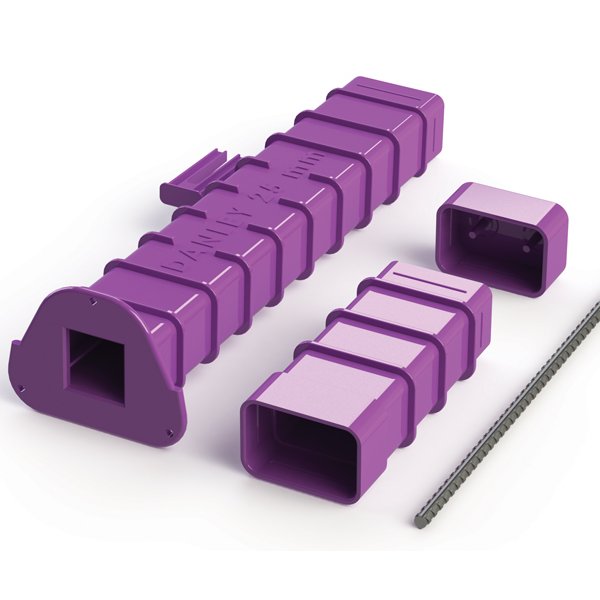

    The 25mm Dowelmaster™ sleeves have a built-in nailing flange and can attach directly to Keyjoint. They have a separate extension length which can be purchased to allow the sleeve to suit longer dowel lengths.

    • Available 25mm square dowels.
    • 25mm suits 500mm dowel length.
    • Prevents slab lock-up.
    • Sleeves provide both lateral movement and expansion capacity.
    • Simple to install.
    • No need to drill forms to support dowels during the concrete pour.
    • Separate nailing plate available for purchase for wooden form boards.
    • Supplied with fixing stake and wedge for rear supportAn extension for the 25mm Dowelmaster™ can be purchased to allow it to suit longer dowels.
