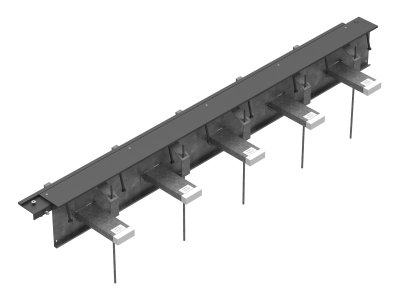

Plate 60 ArmourMate™

  • Description
  • Enquiry
  • Features
  • Documents

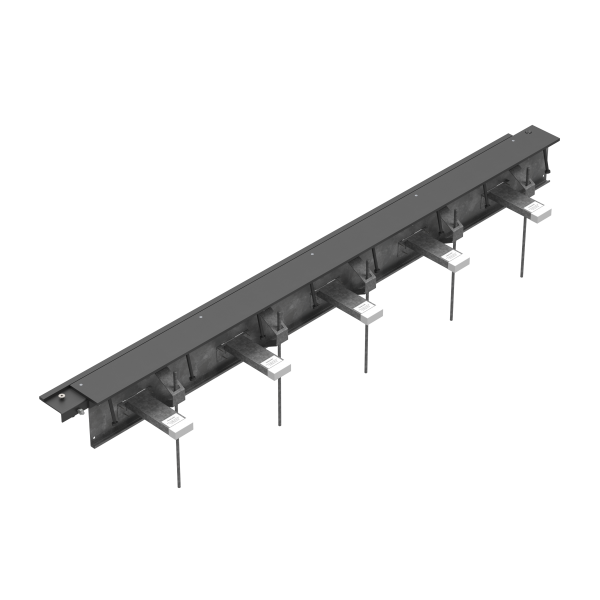

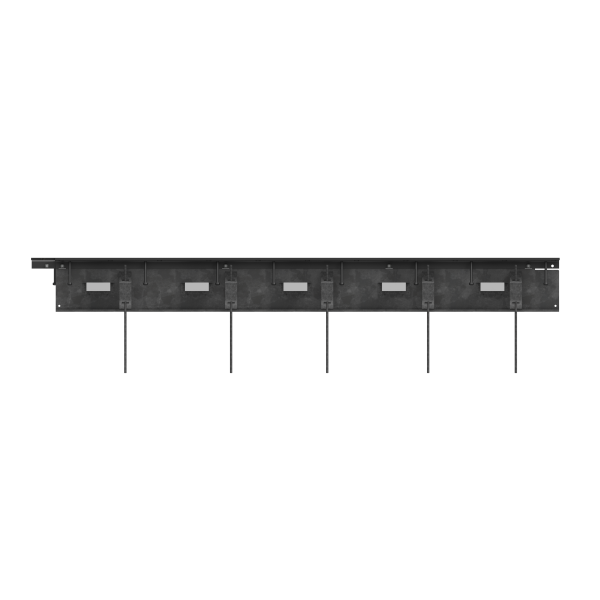

Plate 60 ArmourMate™ is a plate type armour edging solution and is suited to applications where the wear surface must withstand materials handling traffic with small hard-wheels carrying high-loads on a daily basis, in particular semi-automated and automated materials handling environments.

It is designed to be used in situations where larger expansion gaps are expected, particularly post tensioned slabs. The plate over the gap provides a smooth ride for traffic travelling over the joint, minimising wheel damage and impacts. It allows for up to 60 mm expansion in the joints.

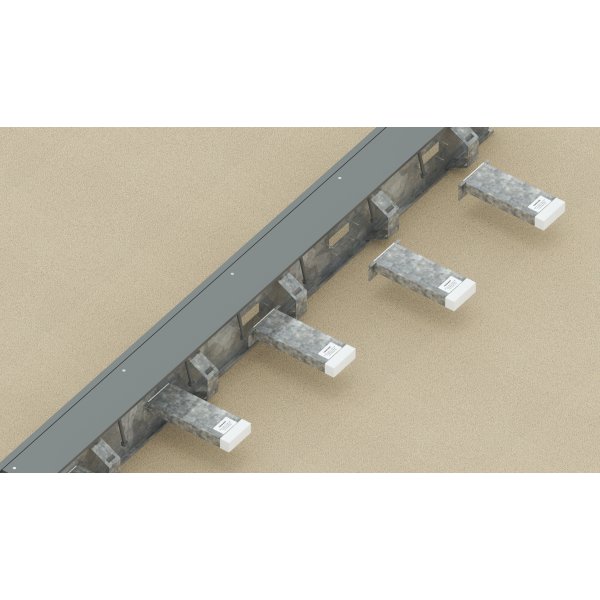

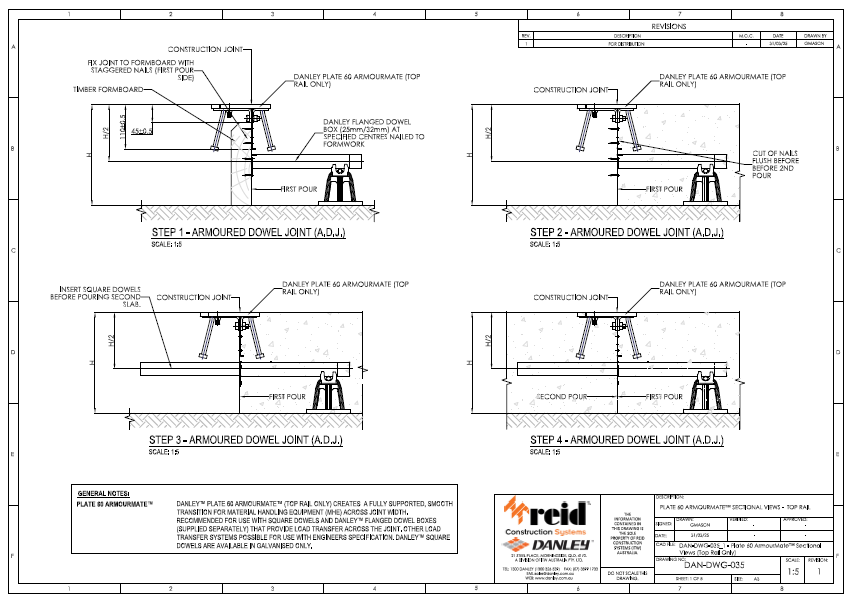

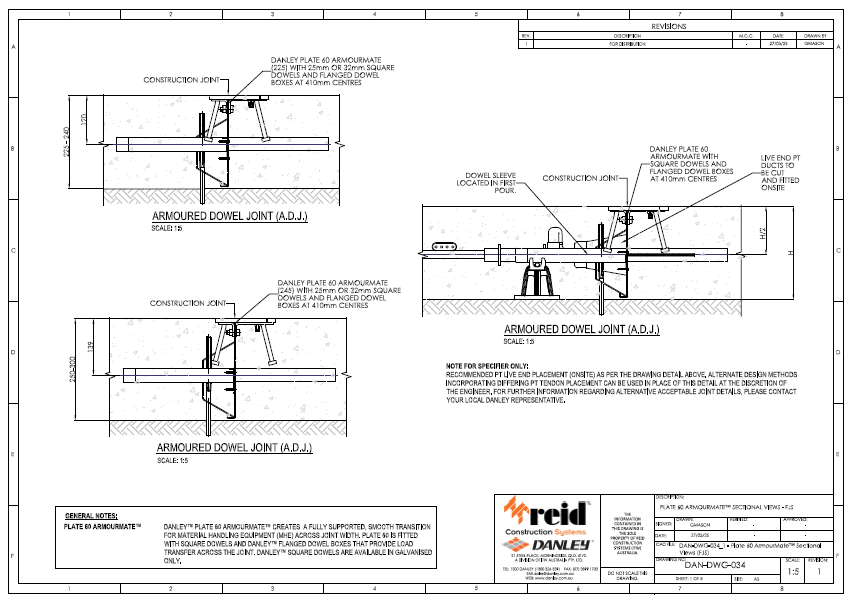

Plate 60 ArmourMate™ systems are designed to provide the total joint system solution by incorporating 3 systems in the one solution, being the Plate 60 ArmourMate™ steel angles and plates as the armour edging, the Square Dowel and Flanged Dowel Box as the load transfer system and the galvanised separation plate as the sacrificial formwork that takes place of the traditional form board. Plate 60 ArmourMate™ is made to customer specification.

    Features
    1. Used with high capacity Grade 300 square dowels and Flanged
      Dowel Boxes.
    2. Shear Studs have the highest material tolerance comparable to
      rails, tested at 34 kN breaking strain, shears at shank.
    3. The cover plate covers the joint gap between slabs preventing
      debris from fill joint gap.
    4. Patented twist and lock stake bracket system for easy setup.

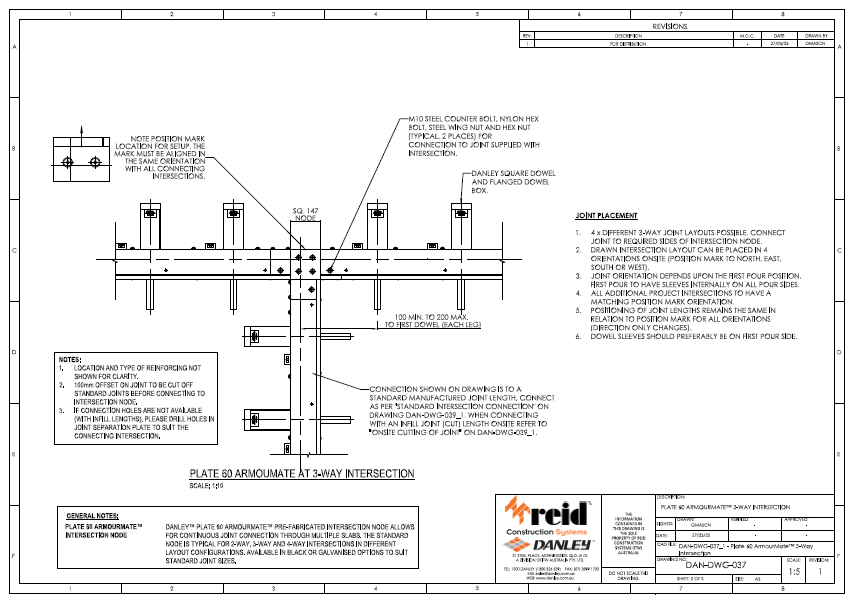

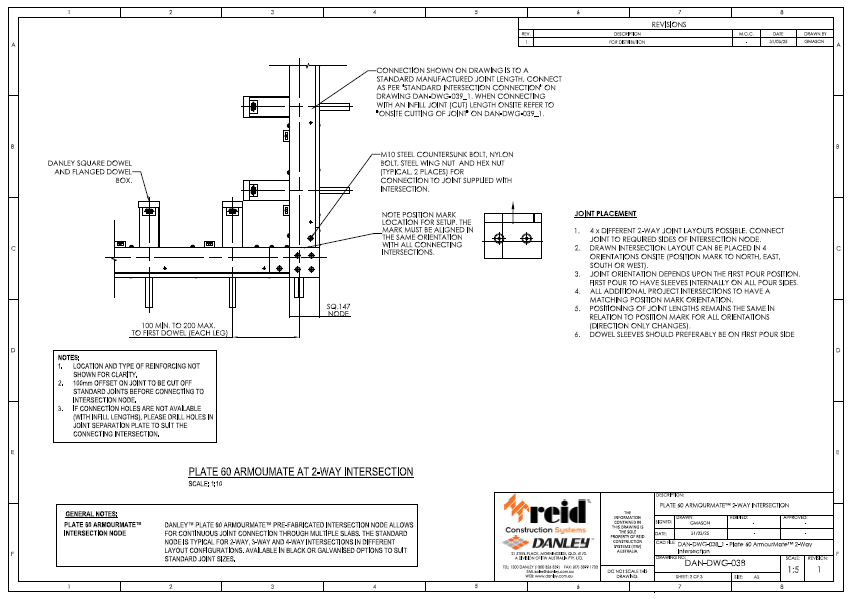

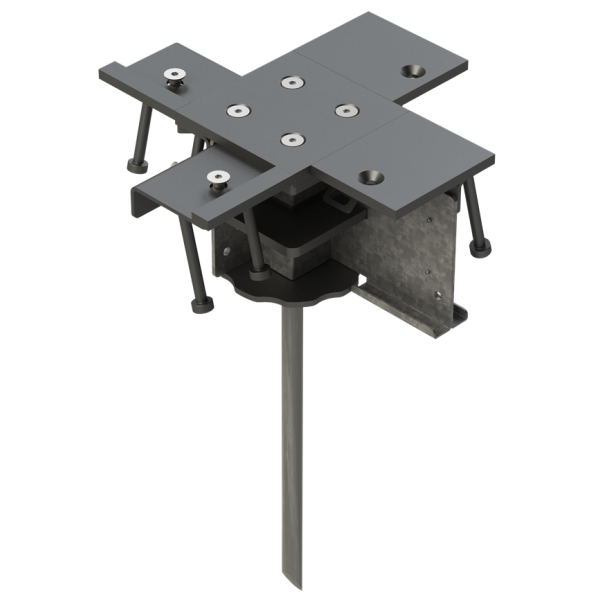

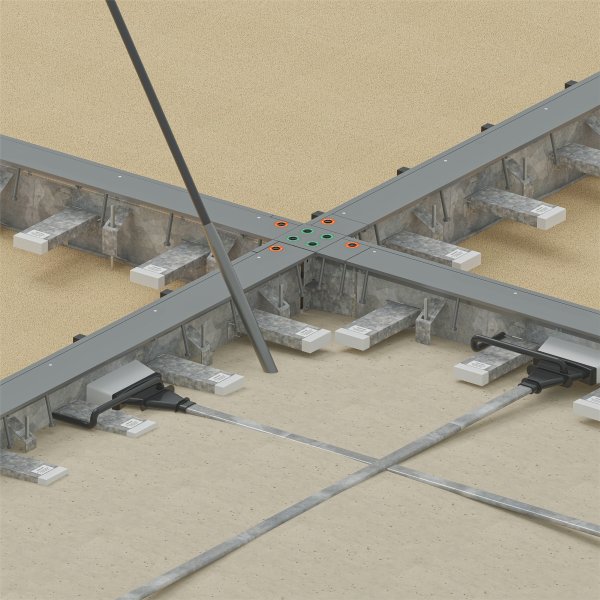

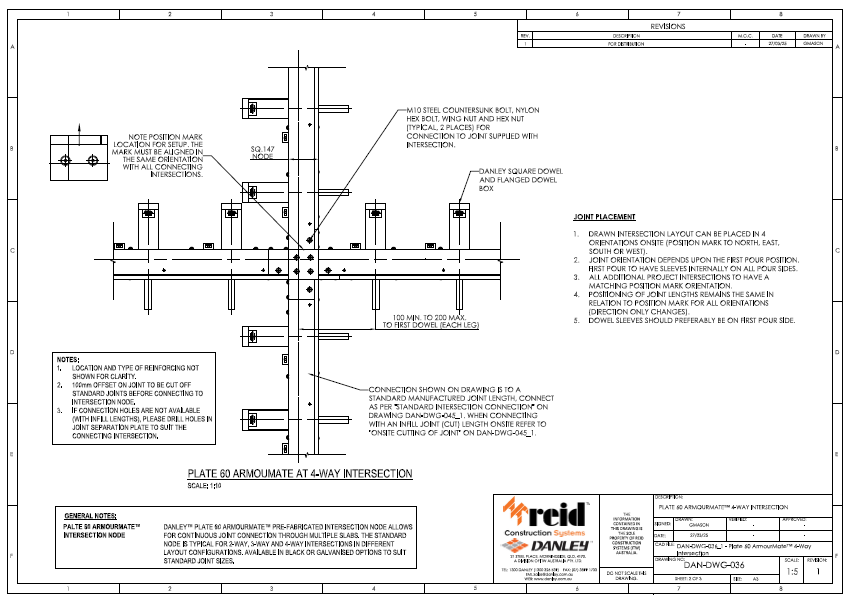

    5. Intersections and infill’s available by request.

    Advantages

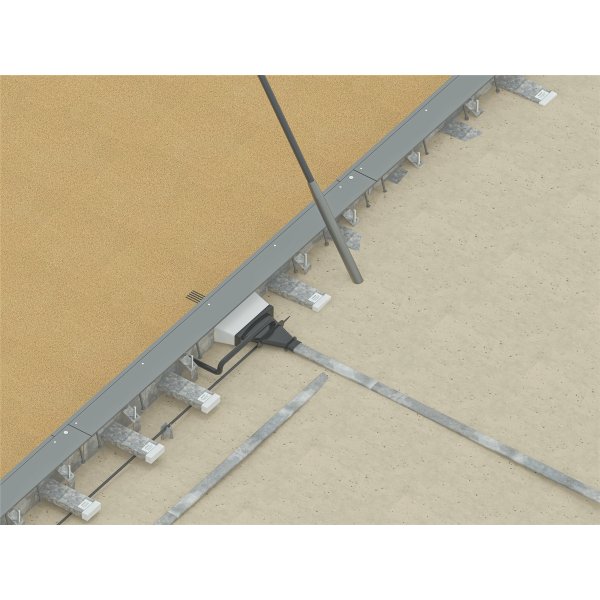

    • Expands large post-tension slab joint gap widths of up to 60 mm.
    • Incorporates the joint cover, edge protection, load transfer and
      formwork in a single system.
    • Smooth wheel transition over larger gap openings.
    • The cover plate remains supported either side of the gap once the
      joint has opened up.
    • Can be made to match onsite PT specifications (optional).
    • Galvanised formwork plate on all systems.
